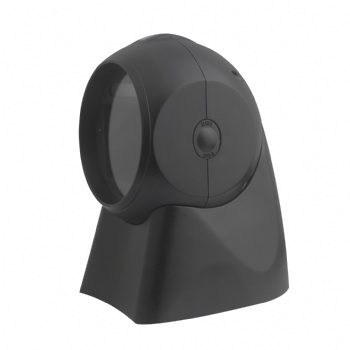

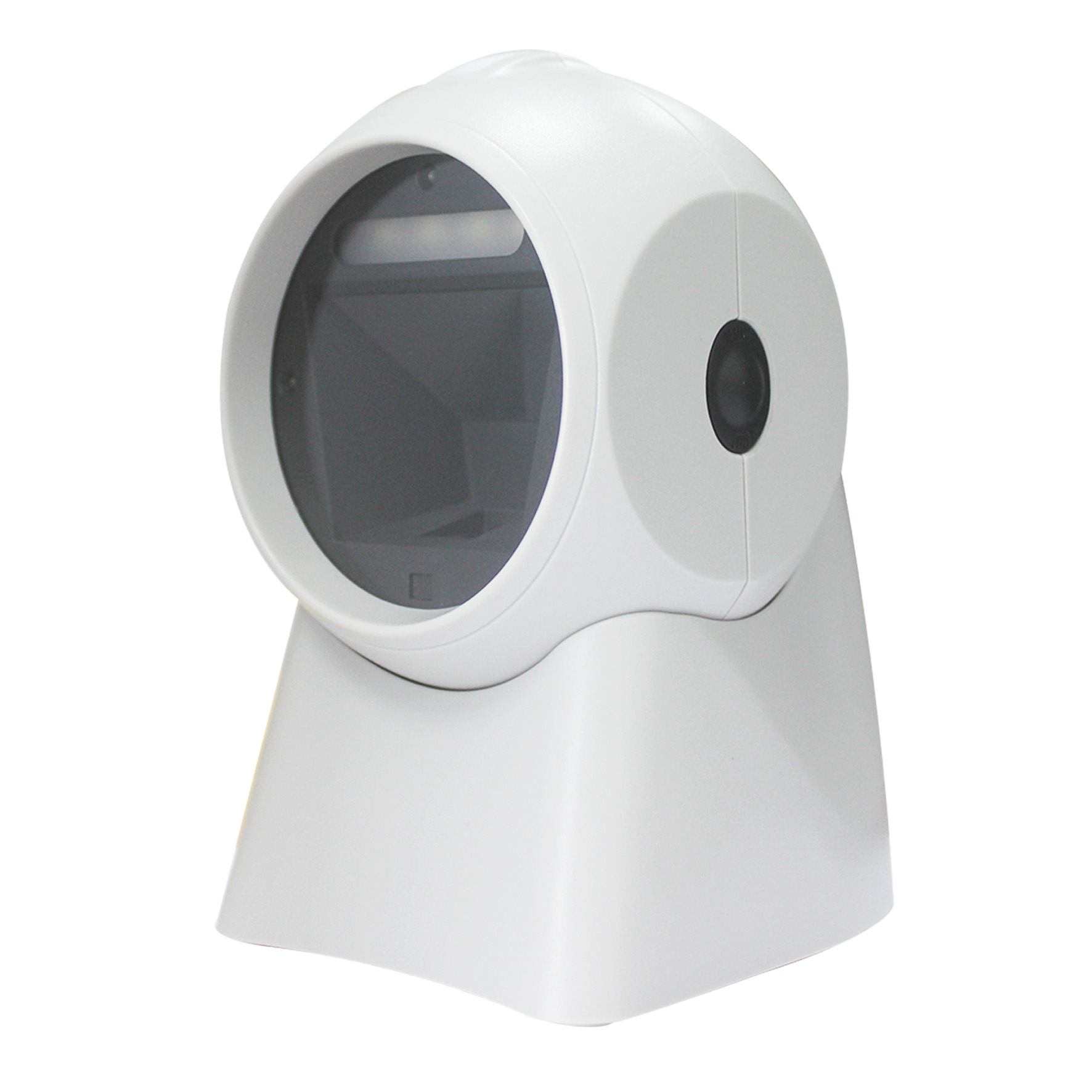

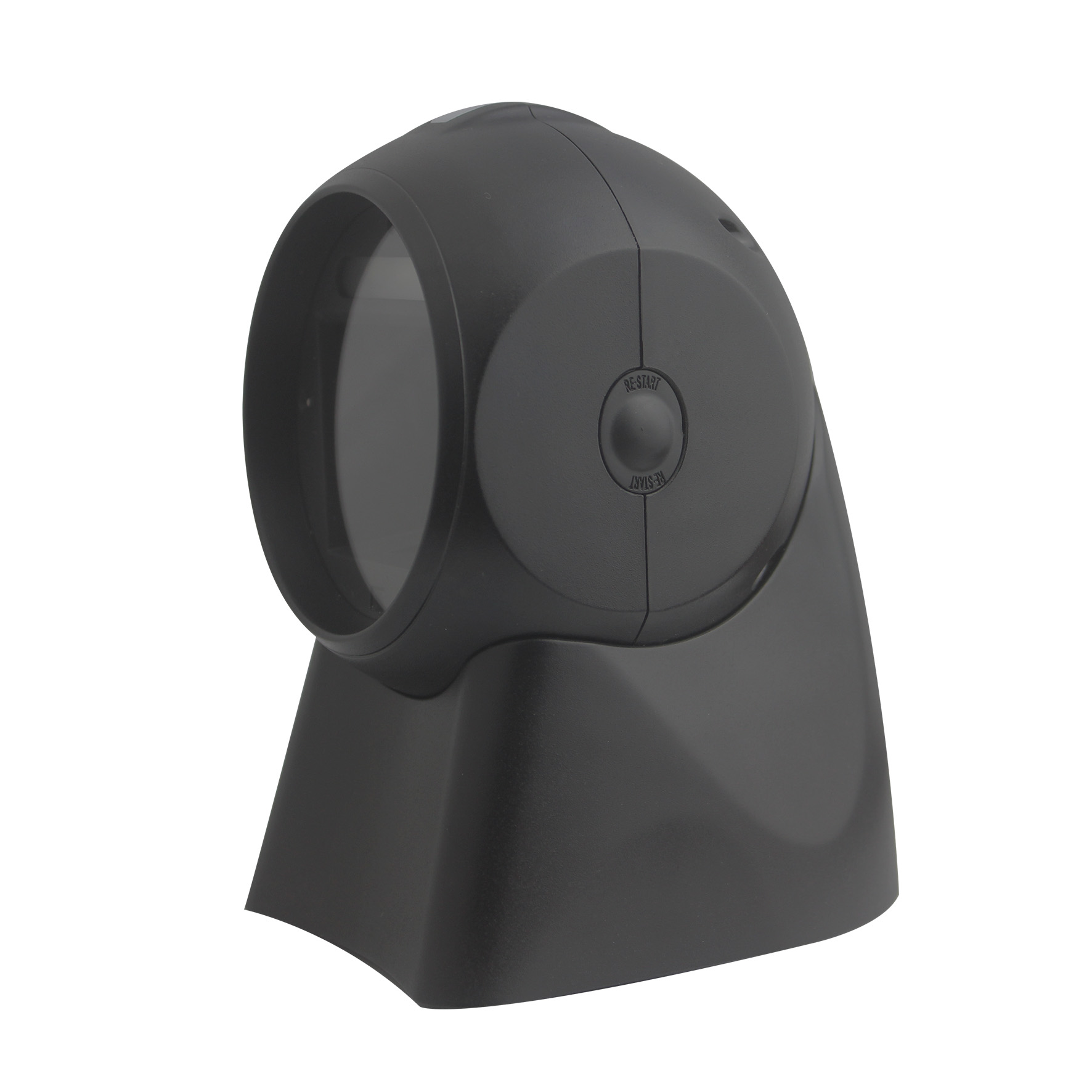

2D barcode scanner DHM7301

2D barcode-making collections

Support 2D barcode payment with Alipay and Wechat.

lightning invoicing

Support with Alipay，National tax，Aisino，WeChat, lightning invoicing. WeChat billing assistant, lightning invoicing.(custom-made)

Super long depth of field

0—200mm@（UPC/EAN 100%，PCS90%）

High precision

The decoding accuracy 5mil.

Higher density of integration

New generation programming technology is adopted to reduce the discrete components so as to strengthen the density of integration and reduce the breakdown rate.

Simple to set up

Enter settings-scan setting code-exit setting, only three steps, simple and practical.

USB of free drivers:

Plug and operate, windows comes with driver, no need to install the driver.

Fill light switch

Easy to switch enable between disable.

anti-scratch acrylic

Adopt imported anti-scratch material to ensure the window prevent from scratch after using for long time.

Stereo speaker

Stereo speaker adopted of graceful and vigorous acoustic quality rather than sharp and monotonous.

Military quality assurance

Each spare part is subject to strict inspection and all products are under rigorous test to ensure 100% qualification rate.

Aging test

All products are passed 72 hours aging test and actual operation test before the consignment.

Bite free test

Products have passed five millions times error free test.

Proprietary intellectual property:

Our products are of independent intellectual property from appearance, hardware and software. Meanwhile, we have obtained the Layout-design patent, utility model patent, invention patent and software copyright.

Bi-color LED indicator lights:

Adopt bi-color LED indicator lights to display different conditions in the operation. Standby：green；Decoding: red.

easy-installed interface

It can be easily installed and moved without any tools, you don't need find clips anymore.

Exquisite packaging:

The packaging adopts imported cardboard and each of them could withstand 50kg external forces. It wouldn't be out of shape when someone stands over it after put a piece of wood. Furthermore, delicate and compact packaging can also save freight.

Pixels

752*480 CMOS

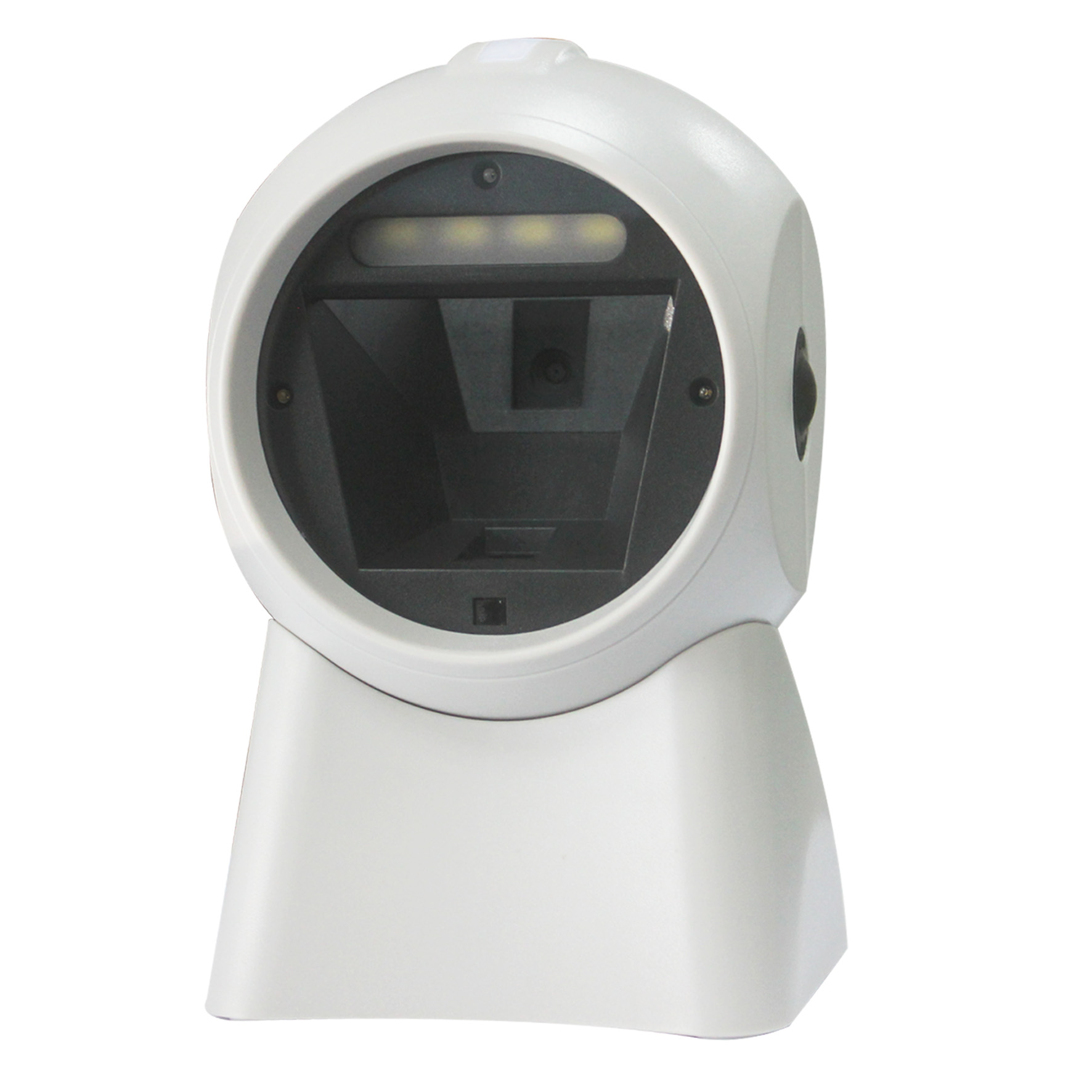

Illumination

white light, LED

Reading code system

 Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13,  ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited, RSS-Expand)

PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200,

ECC000, 050, 080, 100, 140), Han Xin code.

Resolution

≥5mil

Motion Tolerance

  2.5 m/s

Scan Angle

 Pitch

±50°@ 0°Roll and 0° Skew

 Roll

±360°@ 0°Pitch and 0° Skew

Skew

±60°@ 0°Roll and 0° Pitch

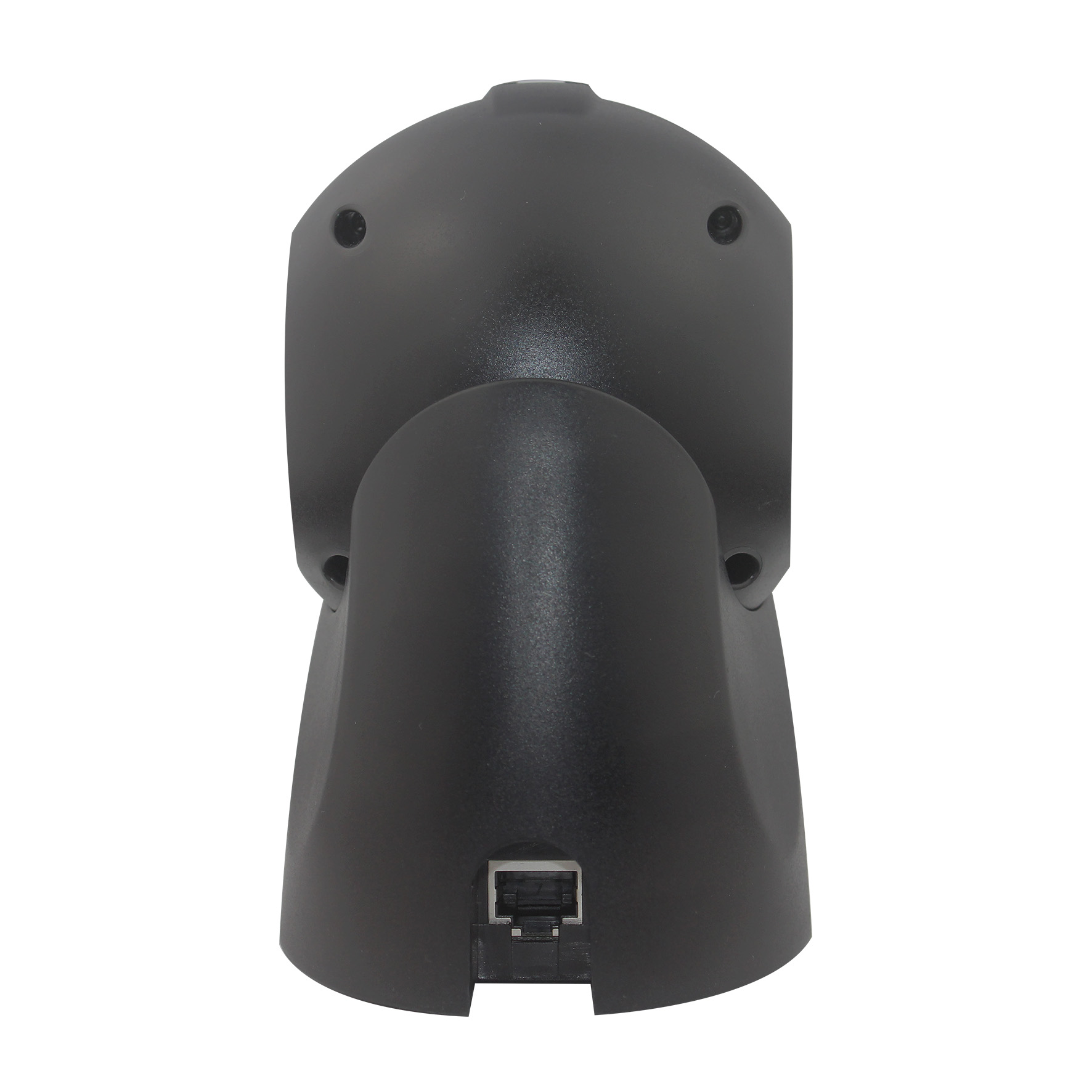

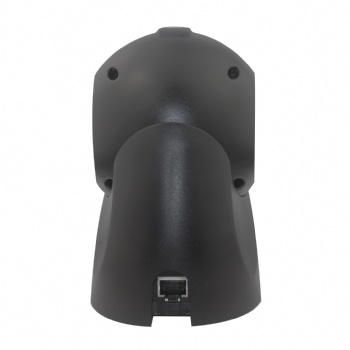

Interface

USB HID-KBW，USB virtual port，USB HID-POS TTL-232，RS-232

Field of View

Horizontal 44°, Vertical 33.2°

Depth of Field

EAN-13

0cm—20cm（13mil）

PDF 417

0cm-7cm（6.67mil）

CODE 39

0cm-12cm（5mil）(figure 1)

Date Matrix

0cm-4cm（10mil）

QR Code

0cm-10cm（15mil）

Dimensions（L*W*H）

89*108*143mm(figure 2)

Weight

245g（Scanning Platform only）

Operating Temperature

20℃~+50℃ (-4°F~122°F)

Storage Temperature

-40℃~+80℃ (-40°F~176°F)

Humidity

5%~95%（non-condensing）

ESD

±14 kV（air discharge），±8 kV（direct discharge）

Impact resistance

1.2m drops to concrete(for six sides, one drop per side)

Sealing

IP 52
